Woodcraft Order these OneTIME Tools before April 30

Perfect Mortise and Tenon Marking Tool plus Pin-Point Doweling Accuracy, Both Fast and Easy To Use with Flawless Results

Love and Marriage, Horse and Carriage, You Get It! Shortly after we released our popular MT Center Gauge a couple years ago, our customers were clamoring for the perfect accessory– a Doweling Jig. So a few months later we offered the companion tool. But as OneTIME Tools, many woodworkers missed out owning the complete kit. Now you can order the horse, the carriage or the whole shebang.

The MT Center Gauge and Doweling Jig. Woodpeckers MT Center Gauge and Doweling Jig easily and accurately find the center of a board’s edge every time; no measuring and no tedious trial and error adjustments required. This makes it the perfect tool for both mortise and tenon layout and drilling dead-on aligned dowel joint holes.

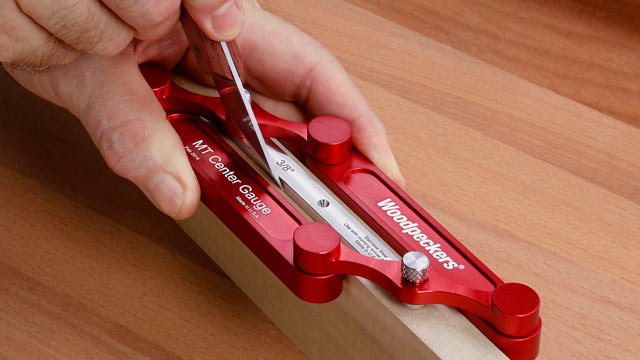

Always Find Dead Center With The MT Center Gauge. This layout tool takes all the guesswork out of precisely marking-out mortise and tenon joints that are centered exactly on your stock. Based on the never-fail reliability of a parallelogram, the MT Center Gauge features two, precision-machined parallel arms that quickly adjust to the stock thickness, placing the center bar dead center on the material. Just use a pencil, marking knife or scribe tool to mark out the center bar location on your stock– and you’re done!

Choose from Four Mortise and Tenon Thicknesses (five for the metric system). Changing the thickness of your mortise and tenon layout is fast and easy. Simply remove the two thumb screws that hold it in place and switch to the marking bar width you want. Marking bars are machined from stainless steel for maximum durability when used with marking knives and come in 1/4", 3/8", 7/16" and 1/2" widths for the inch version and 4mm, 5mm, 6mm, 8mm and 10mm for the metric version. These are all the sizes you need for stock from 1/2" to a full 1” thick and more. The parallel arms open to accommodate stock up to 2" thick. Each marking bar has a precision-machined 1mm tapered hole centered on the bar’s width. Reliably finding the center of stock is essential in a variety of layout work. Use this feature to mark the exact center of stock with either a scribe tool or mechanical pencil.

Center Gauge Doweling Jig. To switch to doweling mode, remove the marking bar and attach the doweling jig bar. To use, simply align the precision-machined notches on the jig’s doweling bar with the dowel location mark on your board, hold the jig and drill. Slide the jig to the next location, align and drill. No need to clamp the jig or tighten knobs.

Features Not Found On Other Jigs. Attach the doweling jig’s adjustable end-stop for drilling two or three precisely spaced end-grain holes for alignment of face frame stiles and rails. The handy inch/millimeter scale lets you accurately set the stop. What could be easier?

Glad You Asked! The second alignment feature lets you drill a series of equally spaced holes along the edge of a board. Just drop the supplied pin in the dowel bar, insert the pin in a hole and continue drilling. The MT Doweling Jig comes with six stainless steel drill guide-bushings; three sized for 1/4" and three for 3/8" drill bits.

A Variety of Ordering Options to Suit Your Needs. Our MT Center Gauge and Doweling Jig can be ordered separately or you can get complete kits in inch or metric that include the marking bars and doweling jig bar or a deluxe kit that includes both the inch and metric marking bars and the doweling jig bar. All offerings come in a custom molded, foam lined case. The deluxe kit is also available in a Systainer case. The MT Center Gauge and Doweling Jig are part of Woodpeckers OneTIME Tool program and are only made to order. Deadline to order yours is Monday, April 30, 2018. Once the deadline passes and orders are filled, these tools will be retired from our product line. Delivery is scheduled for August, 2018.

Every Shop Needs a Reliably Accurate Straight-Edge; Woodpeckers Delivers the Best!

Use our Steel Straight-Edge for Precise Machine Setup & More. The goal of every woodworker is to produce project parts that are straight, flat, and with adjacent edges that are perfectly perpendicular. If you don’t make reliable parts, frustrating problems will creep into your project. The first step to achieving this goal is accurate machine setup. Your best friend in that quest is a highly accurate, reliable straight-edge.

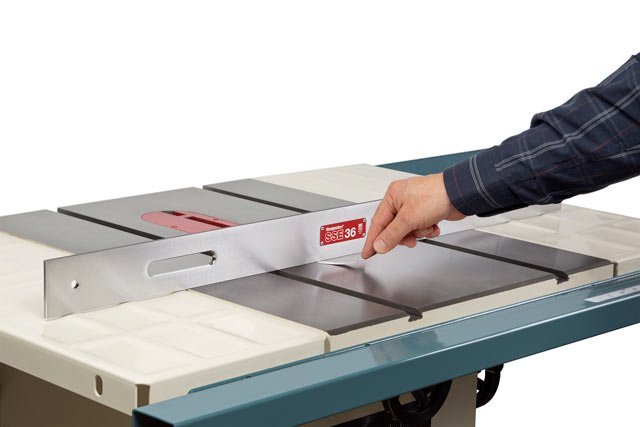

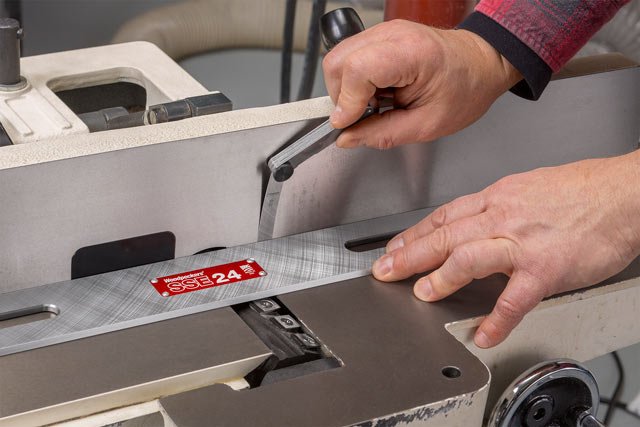

What a Straight Edge Can Do for You. With the right tool you can fine-tune numerous machines in your shop ranging from table saws to hand planes. You can perfectly set your jointer tables to insure they are co-planer (no sagging ends) and make sure your jointer, router and rip fences are straight. You can also easily verify that your planer table extensions are flush and parallel with the main table. A good straight-edge is also perfect for setting planer bottom rollers to minimize snipe and for testing your table saw top, throat plate and extension wings for flatness. A short straight-edge, like the 12” SSE-12, is ideal for even verifying the flatness of your hand plane’s sole.

Beyond Machines, Check Your Bench Top & Stock. The SSE-24 and SSE-36 are ideal for verifying that jointed stock edges are straight and ready for glue-up as well as determining if face surfaces are flat and snipe free.

Depend on Woodpeckers Reputation for Precision, Reliability & Quality. Both edges of these American made tools are ground to a tolerance of .0002” per 12” of length. And that’s not a typo, it really is 2 ten thousandths of an inch. And every tool is quality checked on the company’s video optic testing equipment. These tolerances far surpass many other straight edges on the market.

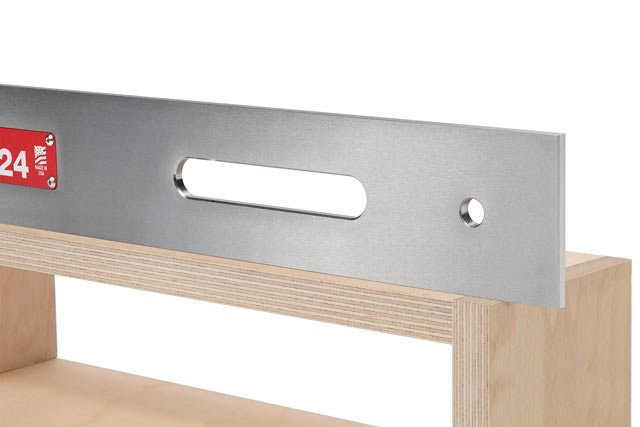

More Features that Make These Straight-Edges Superior. Regardless of length, the SSE’s are 7/32” thick so they are not only stout but can easily stand on their edge while you do your checking. And they are a nominal 2-1/2” in width. The 24” and 36” models have slots machined in both ends for comfortable hand gripping. All models have 3/8” holes in both ends for convenient hanging on a peg or nail.

Buy the Set & Save. Order one or more of these remarkably accurate SSE Straight-Edges and put them to work in your shop. You can select any length and order individually or select the set and get all three at a savings.

Like all our OneTIME Tools, the SSE-12, SSE-24 and SSE-36 are only made to order in our Strongsville, Ohio machine shop. The Deadline to order yours is April 30, 2018. Once the deadline passes and orders are filled, this tool will be retired from our product line. Delivery is scheduled for July, 2018.
